Evaluating the ENO output for logic functions/function blocks
Although this is not mandatory in the programming system, your application logic may require the evaluation of the ENO output.

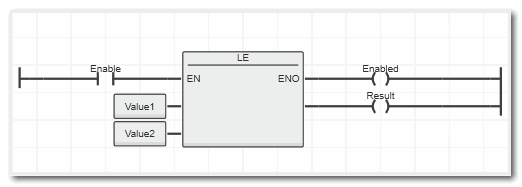

ENO evaluation example for the LE function (transferable to all logic functions/function blocks): In the following example, the function output is "forced" to FALSE if ENO = FALSE.

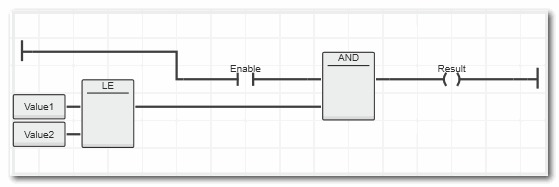

Alternative network without EN/ENO:
