'Visibility' Dynamic

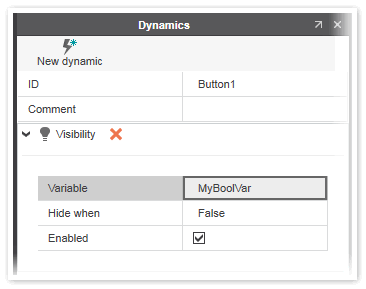

The 'Visibility' dynamic displays or hides the object depending on the value of the Boolean variable assigned to the linked HMI tag or the value of a Boolean expression and the condition selected for the 'Hide When' property.

Based on the value of the Boolean variable or the evaluation result of the Boolean expression and the selected condition, the object will be visible or hidden when the variable is TRUE or FALSE or the expression is evaluated to TRUE or FALSE. If, for example, the 'Hide When' property is set to 'True', the object is hidden when the selected Boolean variable is TRUE.
