<symbolset> Element

This element specifies the symbol and / or symbol group set definitions to be used for an HMI symbol instance on an HMI page or in a symbol group.

Parent element: <symbolsets>

Attributes:

Attribute Description Type / Required

id Unique identifier for this symbol and / or symbol group set definition. This is used as id value of the <symbol> element to refer to the symbols/symbol groups defined by the child <symbol>/<group> elements.
The corresponding symbol/symbol group is replaced by the child <symbol>/<group> elements if the symbol's attribute issymbolset is set to "true". Type: string
Required: yes

Attribute	Description	Type / Required
id	Unique identifier for this symbol and / or symbol group set definition. This is used as id value of the <symbol> element to refer to the symbols/symbol groups defined by the child <symbol>/<group> elements. The corresponding symbol/symbol group is replaced by the child <symbol>/<group> elements if the symbol's attribute issymbolset is set to "true".	Type: string Required: yes

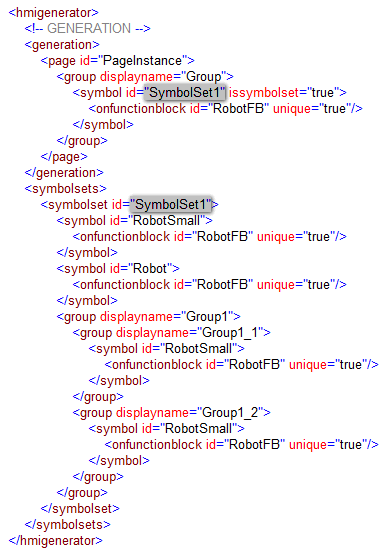

Example:

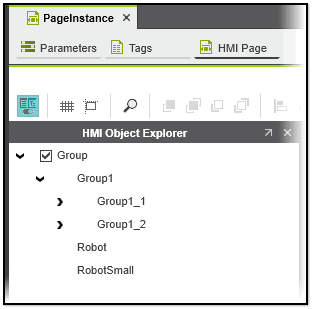

In the following example, the symbol with id="SymbolSet1" in the symbol group 'Group' on the 'PageInstance' page is replaced by the <symbol> and <group> elements defined by the <symbolset> element with id="SymbolSet1".
