SF_Equivalent

Help version 1.1 / Issue date: 2018.03
The following description is valid for the function block SF_Equivalent_V2_0z, Version 2.0z (where z = 0 to 9).

Short Description The safety-related SF_Equivalent function block monitors the signals of two safety-related input terminals for the same signal states. Typically, these signals come from two-channel sensors or switches such as an emergency-stop control device.
The enable signal S_EquivalentOut becomes SAFETRUE when the function block is activated, has not detected an error and the S_ChannelA and S_ChannelB inputs both show the SAFETRUE state within the time set at DiscrepancyTime.
For this to happen, the function block must be activated (Activate = TRUE) and it must not have detected any errors (Error = FALSE).

Note
Always connect both inputs to either N/C contacts or N/O contacts.

Block Icon

Inputs Activate

Short description Value

State-controlled input for activating the function block.
Data type: BOOL
Initial value: FALSE

FALSE: Function block inactive

TRUE: Function block activated

Refer to the topic "Activate" for details.

S_ChannelA

Short description Value

State-controlled input for the A channel of the connected two-channel switch or sensor.
Data type: SAFEBOOL
Initial value: SAFEFALSE

SAFEFALSE: Request to switch S_EquivalentOut to SAFEFALSE.

SAFETRUE: Request to switch S_EquivalentOut to SAFETRUE.

Refer to the topic "S_ChannelA" for details.

S_ChannelB

Short description Value

State-controlled input for the B channel of the connected two-channel switch or sensor.
Data type: SAFEBOOL
Initial value: SAFEFALSE

SAFEFALSE: Request to switch S_EquivalentOut to SAFEFALSE.

SAFETRUE: Request to switch S_EquivalentOut to SAFETRUE.

Refer to the topic "S_ChannelB" for details.

DiscrepancyTime

Short description Value

Input for specifying the maximum permissible discrepancy time in seconds. During this discrepancy time the signals at S_ChannelA und S_ChannelB may switch differently.
Data type: TIME
Initial value: #0ms
The discrepancy time is exceeded if different states are present at the inputs once the set duration has elapsed. This results in an error message (if output Error = TRUE, output S_EquivalentOut = SAFEFALSE). Enter a time value according to your risk analysis.
Refer to the warning below this table.

WARNING

Non-conformance to safety function requirements

Verify that the time value set at DiscrepancyTime corresponds to your risk analysis.

Be sure that your risk analysis includes an evaluation for incorrectly setting the time value at the DiscrepancyTime parameter.

Validate the overall safety-related function with regard to the set DiscrepancyTime value and thoroughly test the application.

Refer to the topic "DiscrepancyTime" for details.

Outputs Ready

Short description Value

Output for signaling "Function block activated/not activated".
Data type: BOOL

FALSE: Function block is not activated (Activate = FALSE) and all outputs of the function block are switched to FALSE/SAFEFALSE.

TRUE: Function block is activated (Activate = TRUE) and the output parameters represent the state of the safety-related function.

Refer to the topic "Ready" for details.

S_EquivalentOut

Short description Value

Output for enable signal of the function block.
Data type: SAFEBOOL
Refer to the warning below this table.

SAFEFALSE:

At least one input shows the state SAFEFALSE

or the function block has detected an error

or the function block is not activated.

SAFETRUE:

The function block is activated

and both inputs show the state SAFETRUE

and the function block has not detected an error.

The function block supports a safety-related monitoring function but not a safety-related control function.

WARNING

Unintended machine operation

Verify that the S_EquivalentOut enable signal does not directly control the safety process.

Validate the overall safety-related function, including the start-up behavior of the process, and thoroughly test the application.

Refer to the topic "S_EquivalentOut" for details.

SafetyDemand

Short description Value

Output for signaling "safety-related function requested".
This output displays whether the safety chain is interrupted and as a result, the attention of the operator is required.
Data type: BOOL

FALSE: Safety-related function is not requested.

TRUE: The safety-related function is requested.

Refer to the topic "SafetyDemand" for details.

ResetRequest

Short description Value

Output for signaling "reset is required".
This output indicates whether a reset by the operator is required.
Data type: BOOL

FALSE: No reset required.

TRUE: A reset is required:

to remove an active start-up or restart inhibit (if available for this function block)

or to reset an error.

Refer to the topic "ResetRequest" for details.

Error

Short description Value

Output for error message.
Data type: BOOL

FALSE: No error is present.

TRUE: The function block has detected an error. The S_EquivalentOut output switches to SAFEFALSE as a result.

Refer to the topic "Error" for details.

DiagCode

Short description Value

Output for diagnostic message.
Data type: WORD Diagnostic message of the function block.
The possible values are listed and described in the topic "Diagnostic codes".

Refer to the topic "DiagCode" for details.

Detailed information Signal sequence diagram

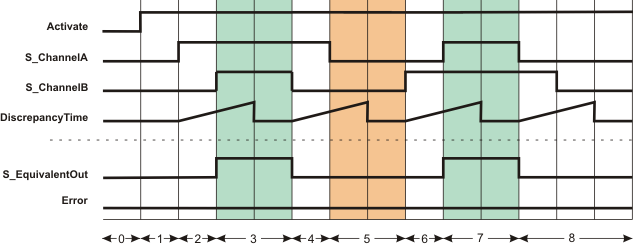

The example below shows the signal curve which occurs if both inputs switch to SAFETRUE or SAFEFALSE within the discrepancy time.

0 The function block is not yet activated (Activate = FALSE).
As a result, all outputs are FALSE or SAFEFALSE.

1 Function block activation (Activate = TRUE) during which SAFEFALSE is present at both the S_ChannelA and S_ChannelB inputs.

2 S_ChannelA switches to SAFETRUE. When the state of an input switches, the discrepancy time measurement starts.

3 S_EquivalentOut switches to SAFETRUE as both inputs (S_ChannelA and S_ChannelB) switch from SAFEFALSE to SAFETRUE within the time set at DiscrepancyTime.

4 S_EquivalentOut switches to SAFEFALSE, as S_ChannelB switches to SAFEFALSE. The discrepancy time measurement starts when the state at S_ChannelB modifies.

5 S_EquivalentOut remains SAFEFALSE and Error FALSE, as input S_ChannelA switches to SAFEFALSE during the discrepancy time.

6 The discrepancy time measurement starts when the state at S_ChannelB modifies again.

7 S_EquivalentOut switches to SAFETRUE as both inputs (S_ChannelA and S_ChannelB) switch from SAFEFALSE to SAFETRUE within the time set at DiscrepancyTime.

8 S_EquivalentOut switches to SAFEFALSE, as S_ChannelA switches to SAFEFALSE. The discrepancy time measurement starts when the state at S_ChannelA modifies.
S_EquivalentOut remains SAFEFALSE, as S_ChannelB also switches to SAFEFALSE within the time set at DiscrepancyTime.

Note
The other signal sequence diagram can be taken into account.

Application example

This example illustrates two-channel control of the safety-related SF_EmergencyStop function block with the help of the safety-related SF_Equivalent function block. The emergency-stop control device is connected to the inputs 1.1 and 2.1 of the safety-related input device PSDI with an ID of 1.
The N/C contacts of the emergency-stop control device are connected to the safety-related SF_Equivalent function block for evaluation purposes. The S_EquivalentOut enable signal of the SF_Equivalent function block resulting from this is connected to the safety-related SF_EmergencyStop function block for further evaluation.

Note
The enable output S_EStopOut of the SF_EmergencyStop function block is directly connected to a global I/O variable or to an output terminal of the application via additional safety-related functions/function blocks.
Connect the S_EStopOut enable output of the SF_EmergencyStop function block to the S_OutControl input of the SF_EDM function block, for example, thus implementing a two-channel output connection.

Further Info
The details and additional information for this example can be taken into account.

S1 Emergency-stop

S2 Reset

See note above the illustration

Function block instantiation

The IEC 61131-3 standard defines function block instantiation. Instantiation means, a function block is defined once and can be used (instantiated) several times. This applies to all FBs (user-defined POUs as well as library FBs, such as IEC standard FBs, firmware FBs, user library FBs).

Why instantiation?
A function block has an internal memory where it stores its own processing data (local variables). As a consequence, the output values calculated by the FB depend on the internally stored values. The same input values applied to an FB instance do not necessarily deliver the same results in another FB instance.
Therefore, it is necessary to store the internal data of the FB to a separated memory area each time the function block is processed, i.e., for each FB instance. To uniquely identify each FB instance and to clearly separate its memory area, instance names are used.
The instance name of the function block has to be declared in the 'Variables' table of the POU where the FB is going to be used.

The following applies:

Function blocks can be instantiated in other function blocks or in program POUs. Calling FBs in function POUs is not possible.

Functions are called without instantiation because they do not have an internal memory.

Safety-related and standard (non-safety-related) code is strictly distinguished in PLCnext Engineer. If a Safety PLC is included in your project, the following applies:

Safety-related FBs can only be instantiated in safety-related POUs but not in standard (non-safety-related) POUs.

User-defined standard FBs can only be instantiated in standard POUs. They cannot be called in safety-related POUs.

Particular standard firmware FBs can be instantiated in both safety-related and standard POUs.

Note
When inserting a standard FB into a safety-related SNOLD network, the rules for implicit type conversion (safety-related to standard) apply.

Example for the instantiation of a user-defined function block

The user-defined function block 'TLC' ("Two Level Controller") is added to the 'Functions & Function Blocks' category (COMPONENTS area). It shall be called twice in the program POU 'Container' to control the filling level and the temperature of a boiler.

For both FB instances, an instance name declaration is added to the 'Variables' table of the calling program POU 'Container': TLCTemperature and TLCLevel. Thus the 'TLC' function block can be called twice in the code worksheet of the calling POU by means of these instance names.
Both FB instances have been inserted into the 'Container' code worksheet, each instance with different variables connected to its input and output formal parameters ('Level...' and 'Temperature...').

Additional information is available in the following sections:

Functional description

Additional signal sequence diagrams

Details of the application example

Fault avoidance

Implementation of safety requirements from applicable standards
