'Action on Click' Dynamic

The selected action is triggered when the user clicks the object with the mouse (for example, presses and releases a button).

The following actions are available:

Action Description

Execute command Executes the selected command as soon as you click the HMI object. Depending on the selected command type, there are different parameters to be configured (see below for a description of the available commands).

Load page Loads (opens) the HMI page selected in the 'Page' drop-down list. The drop-down list provides all HMI pages in the current project.

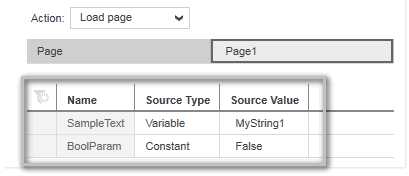

If the selected HMI page provides page parameters, the page parameter table is shown. Here you have to assign valid constants or variables to each page parameter (see the section "Assigning constants and variables to HMI page parameters" in the topic "Defining HMI Page Parameters" for details).

Page back Goes back to the previous HMI page.

Page forward Goes forward to the next HMI page.

Navigate right/left/up/down Navigates to the HMI page that is located right, left, below or above the page in the page structure defined in the 'Navigation' editor.

Navigate home Navigates to the HMI page that is defined as the startup page in the 'Navigation' editor.

Bring to top Moves the object selected from the 'Target' list box to the top of the page. The 'Target' list box contains a list of all IDs of the objects that are added to the current page.

Toggle value Toggles the Boolean variable assigned to the selected HMI tag.

Increment value Increments the variable value assigned to the selected HMI tag by the value set for the 'Step' (positive or negative value).

Write value Writes the value set in the 'Source Constant' field to the variable selected in the 'Destination Variable' field.

Write text list value Writes the 'Write Value' of a text list entry to the variable selected in the 'Destination Variable' field depending on the value (constant, variable, expression, ...) entered in the 'Source Value' field. The 'Text list' drop-down list contains all text lists configured in your project.
Example

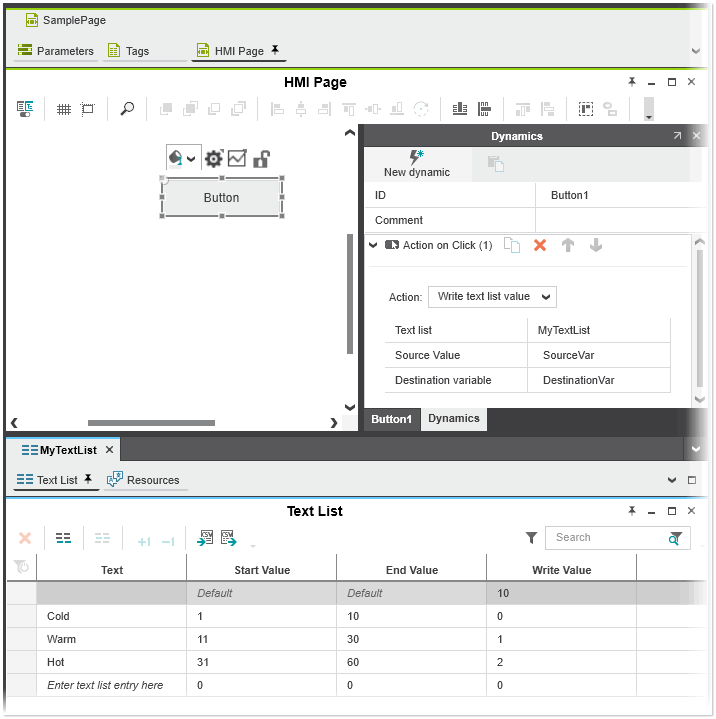

With the following configuration, pressing the button writes the 'Write Value' 0, as defined in the connected text list 'MyTextList', to the destination variable 'DestinationVar' if the source value 'SourceVar' lies in the range between 1 and 10. If the source value is between 11 and 30, the value 1 is written to the destination variable and so on. If the source value is not within the range between 0 and 60, the default value 10 is written to 'DestinationVar'.

Open dialog Opens a dialog on the selected HMI page.
If the selected HMI page provides page parameters, the page parameter table is shown (see the 'Load page' action). Here you have to assign valid constants or variables to each page parameter (see the section "Assigning constants and variables to HMI page parameters" in the topic "Defining HMI Page Parameters" for details).
The 'Dim Background' controls dimming of the background when floating dialogs are used. If set to 'True', the background outside the dialog is darkened when it is opened.

Close dialog Closes a dialog on the selected HMI page.

Log in Only available if security for HMI is enabled in your project.
Loads the user role(s) and the assigned permissions for the user logged in with his account into the current session when running the HMI application. By default, the 'Log In' action is assigned to the 'Log In' button on the 'Login' page template.

Log out Only available if security for HMI is enabled in your project.
Logs out from the current HMI session and then opens the HMI page selected in the 'Page' drop-down list. The drop-down list provides all HMI pages in the current project.
If the selected HMI page provides page parameters, the page parameter table is shown. Here you have to assign valid constants or variables to each page parameter (see the section "Assigning constants and variables to HMI page parameters" in the topic "Defining HMI Page Parameters" for details).

Change password Changes the password that is used to restrict the access to the HMI. There are four parameters associated with the action:

'Old password' - Text input where the old password has to be entered. Must be linked with a 'Text Input' object.

'New password' - Text input where the new password has to be entered. Must be linked with a 'Text Input' object.

'New password confirmation' - Text input where the new password has to be confirmed. Must be linked with a 'Text Input' object.

'Error text' - Text field which displays errors when changing the password. Must be linked with a static 'Text' object.

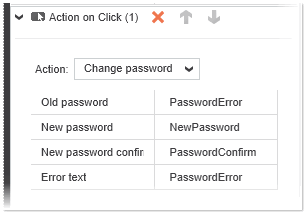

Example

Note

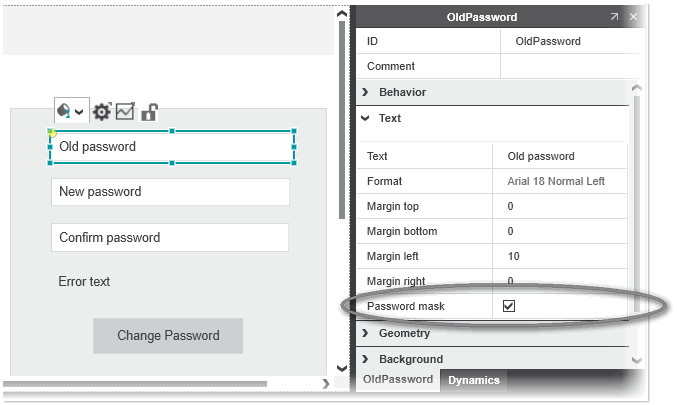

The 'Text Input' objects linked with the password parameters must have the 'Password mask' activated. Otherwise a compiler error is reported. With the 'Password mask' property checked, the object displays a mask that ensures that the text is not visible when the user types it.

Execute commands

The following commands can be selected for the 'Execute command' action:

Command Description

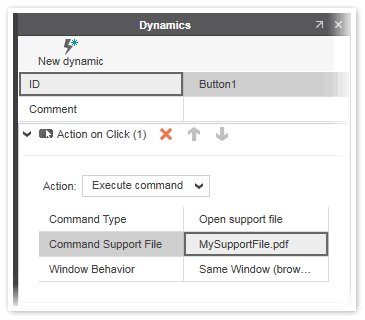

'Open support file' The support file selected in the 'Command Support File' list box is opened in the web browser in a new window (see the following description) or new tab depending on the selection made in the 'Window Behavior' list box.
The 'Command Support File' list box provides the support files that you have added to your project as described in the "Adding HMI support files" chapter.
Enabling the web browser to open a new window
To enable the web browser to open a new window for the support file, you have to configure your web browser accordingly:

In Firefox, select 'Options' from the 'Tools' menu and click the 'General' tab. On the 'General' tab, go to the 'Tabs' section and uncheck the option 'Open links in tabs instead of new windows'.

In Google Chrome, install and enable the 'New Tab, New Window' extension provided in the Chrome Web Store.

In Microsoft Edge, install and enable the 'New Tab, New Window' extension provided in the Chrome Web Store.

'Open project' Opens the HMI project that resides on the HMI server specified with the web address in the 'HMI Project Location' field. Enter the web address in the following format:
http://<IP address> or https://<IP address>
The HMI project is opened in the web browser in a new window or new tab depending on the selection made in the 'Window Behavior' list box.
In the 'Launcher Alias (name)' field enter an alias name if the controller is configured with more than one project.

'Open URL' Opens the URL specified in the 'Command URL' field in the web browser in a new window or new tab depending on the selection made in the 'Window Behavior' list box.
To navigate outside the HMI application to an URL, enter the URL enclosed by single-quotation marks in the following format:
'http://www.example.com' or 'https://www.example.com'

'Run command line (native only)'

Note
'Native only' means that this command can only be executed when using the PLCnext Engineer HMI Native Client. Clicking an HMI object with this assigned action in a usual standard browser does not cause any action. This restriction applies for security reasons.

The command line option allows you to execute a command line to open an application or run a command script (*.bat file) on the HMI device running the Native Client. Enter the command enclosed by single-quotation marks including the full path to the command and the corresponding arguments in the 'Target' field. In the optional 'Start in' field, enter the working directory enclosed in single-quotation marks where the specified command should be executed.

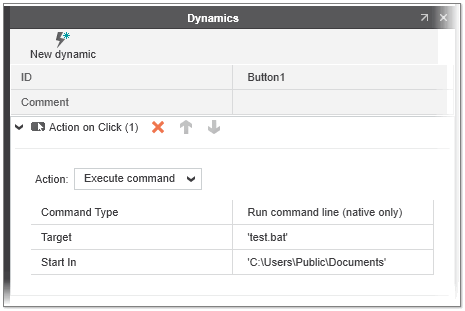

Example

'Close application (native only)'

Note
'Native only' means that this command can only be executed when using the PLCnext Engineer HMI Native Client. Clicking an HMI object with this assigned action in a usual standard browser does not cause any action. This restriction applies for security reasons.

Closes the HMI application.
