RTC_WS

Type Function block

Description Reads the local date and time configuration from the controller and writes it to a wstring variable. The local time is the UTC (Universal Time Coordinated) time plus the time zone configured on the controller. If the parameter EN is set to TRUE, the local date and time configuration of the controller is written in the date and time format into the connected output string. If EN is set to FALSE, the string is not changed.
The output string is written according to the IEC 61131-3 short prefix date and time notation.
Example: DT#1998-11-21-15:27:56.46

Notes

The function block is only supported on systems with an available realtime clock.

Function blocks have to be instantiated. The instance name of the function block has to be declared in the 'Variables' table of the POU where the FB is going to be used. The instance name must be unique within the POU.

Parameters Input
EN

Data type: BOOL

Description: If TRUE, the current date and time is written into the connected output string.

Outputs
Q

Data type: BOOL

Description: Indicates that date and time have been written to the string connected at CDT.

CDT

Data type: WSTRING

Description: Contains the local date and time configuration of the controller.

Example Example

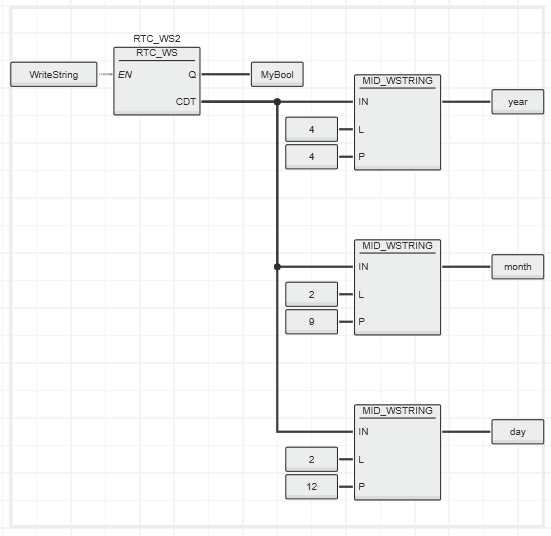

The function block RTC_WS creates a string including the actual date and time. The complete string is divided up into the simple string elements year, month and day. The MID_WSTRING functions are used to extract the string elements.

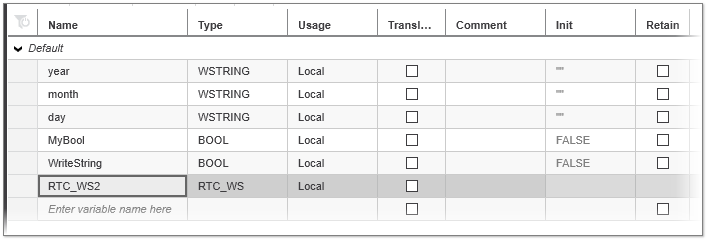

'Variables' table with declarations

Code
