Ports of user-defined Data Types

Ports can be of user-defined data types, such as arrays or structures. You can create such a user-defined port in the same way as a variable of a user-defined data type:
  1. Enter the type definition in the data type worksheet using the TYPE ... END_TYPE declaration keywords.
  2. Declare a port of the user-defined data type: Set the 'Usage' to 'IN Port' or 'OUT port' when declaring the port in a program POU.

Now you can use the elements contained in the user-defined types in the program code.

Also external (non-IEC 61131-3) programs may contain ports of complex data types.

Handling port members in the GDS Port List

In the GDS Port List (of the 'PLCnext' node or of a program instance node in the PLANT), you can assign individual members of such a port to another port. When opening the Role Picker for an assignment, suitable port members are offered for selection.

Example

The OUT port MyPortArray is a user-defined ARRAY data type:
MyArray : ARRAY[0..9] OF BOOL;

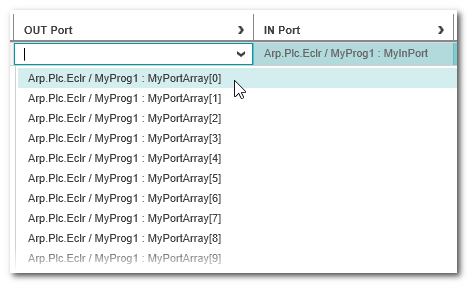

When opening the Role Picker for a Boolean port in the GDS Port List, the individual port members are offered for selection.

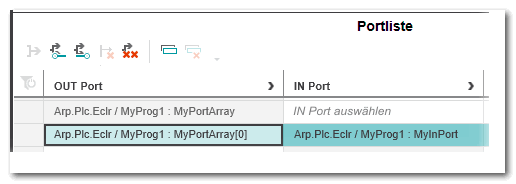

The first bit of the array has been mapped to Boolean IN port:

After disconnecting a port member, it remains unconnected in the GDS Port List. It can then be deleted with the toolbar command 'Delete unconnected port member':
