Editing Objects Using In-place Buttons
Objects in an HMI page provide a number of in-place buttons which allow you to edit the object and to open/close the object's properties tabs in the properties window. The in-place buttons appear next to an object (or several objects) whenever selected in the HMI page. Which buttons are available depends on the selection.
When hovering over an in-place button, a tooltip appears providing information on the executable command. The in-place buttons of a selection automatically disappear when the selection is cleared (for example, by clicking another object).

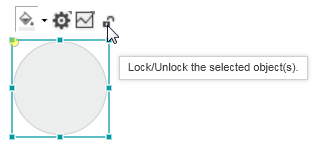

Example: In-place buttons for an ellipse object
