Graphical Code Editor - In-place Buttons

The in-place buttons serve as a kind of object context menu. They automatically appear next to an object (or several objects) whenever you select it or by left-clicking on an empty cell. The in-place toolbar provides easy access to the most used editing commands that can be applied to the object(s).

Which commands are available depends on the selection. The in-place buttons provide tooltips.

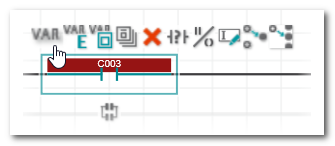

Example: In-place buttons for an LD contact.

The in-place toolbar can also be operated via the keyboard:

Shortcut Operation

<Tab> key Sets the focus to the first command on the in-place toolbar.
Pressing the <Tab> key repeatedly steps through the commands.

<Shift>+<Tab> Selects the previous in-place button.

<Enter> Executes the selected in-place command.

<Esc> Exits the in-place toolbar and sets the focus back to the code object.

Shortcut	Operation
<Tab> key	Sets the focus to the first command on the in-place toolbar. Pressing the <Tab> key repeatedly steps through the commands.
<Shift>+<Tab>	Selects the previous in-place button.
<Enter>	Executes the selected in-place command.
<Esc>	Exits the in-place toolbar and sets the focus back to the code object.
