'Sweep angle' Dynamic

Note
The 'Sweep angle' dynamic is only available on Circular Arc objects.

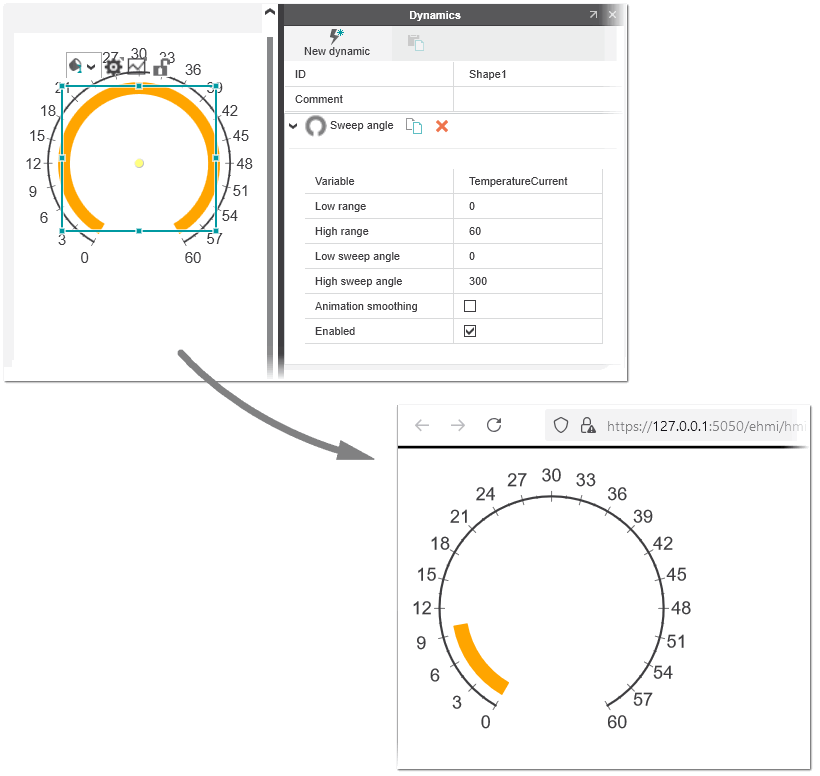

The 'Sweep angle' dynamic animates the sweep angle property of a circular arc depending on the value of the numeric variable assigned to the linked HMI tag or the evaluation result of the expression. The dynamic interpolates the defined sweep angle on the circular arc based on the range from the defined 'Low range' to the 'High range' (i.e., the range of values for the control variable that is linked to the HMI tag).

The 'Sweep angle' dynamic has the following properties:

Property Description

Low range Minimum value for the bound variable.

High range Maximum value for the bound variable.

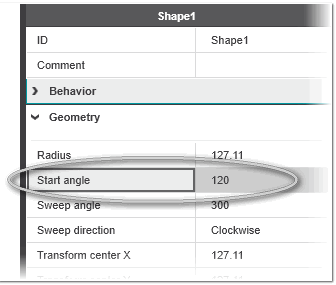

Low sweep angle Sweep angle, in degrees, of the arc relative to the static 'Start angle' of the circular arc (configured on the properties tab under the 'Geometry' category) when the variable value is at the low end of the value range set with the 'Low range' and 'High range' values.

High sweep angle Sweep angle in degrees of the arc when the variable value is at the high end of the range.

Animation smoothing If activated, linear interpolation to smooth the animation between data updates is used.

Enabled If deactivated, the dynamic will have no effect.

Property	Description
Low range	Minimum value for the bound variable.
High range	Maximum value for the bound variable.
Low sweep angle	Sweep angle, in degrees, of the arc relative to the static 'Start angle' of the circular arc (configured on the properties tab under the 'Geometry' category) when the variable value is at the low end of the value range set with the 'Low range' and 'High range' values.
High sweep angle	Sweep angle in degrees of the arc when the variable value is at the high end of the range.
Animation smoothing	If activated, linear interpolation to smooth the animation between data updates is used.
Enabled	If deactivated, the dynamic will have no effect.
