Step 5 (optional): Adapt the Visualization Display

There are several possibilities to adapt the curve display. The adaptations are also possible while a session is active. It is not necessary to pause the curve update.

Hide/show particular curves
Open the legend and deactivate the checkbox of the variable you want to hide in the display. If hidden, the subscription/recording of this variable is nevertheless continued, i.e., it is not deleted from the subscription list. By activating the checkbox, the curve becomes visible again and no values are missing.

Adapt the curve display

, Adapt the time axis: full session length or only last minute, and real recording time labels or elapsed session time.
Allows the manual scaling and panning of each value axis.

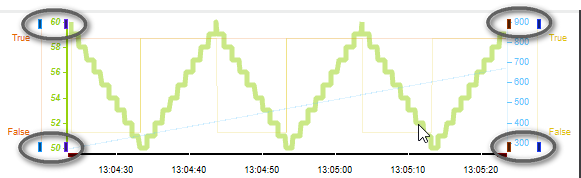

  • While activated: Each axis gets a handle at its beginning and end:

    Scaling: Position the mouse pointer on such a handle (cursor changes to double arrow) and drag it up or down to adapt the scaling of the axis:

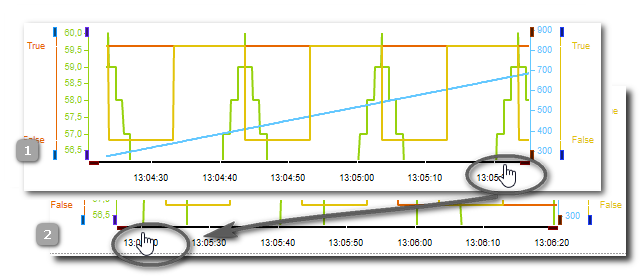

    Panning (moving the visible range): Position the mouse pointer on the axis (not a handle) and drag the axis to move the visible range:

  • While deactivated, the default zoom factor is applied to each axis.
or Adapt the curve view: show all curves in one graph or as stacked view.

Refer to the toolbar description for details on the buttons.

Note
A warning symbol at the right side of the Logic Analyzer toolbar informs you about any problems with the data display (e.g., unsuitable axis scaling for the recorded values). Hovering the mouse over the warning symbol displays a tooltip with details.
