Safety PLC Diagnostics out of the Safety Cockpit

Besides the main Safety PLC control functions, the Safety Cockpit displays essential diagnostic information on the Safety PLC.

How to open the Safety PLC Safety Cockpit

To display the most important diagnostic information on the Safety PLC in the Safety Cockpit, a communication connection between PLCnext Engineer and the Safety PLC is required. It is not necessary to start the monitoring or debug mode.

Make sure that the Safety PLC is set as target system (not 'Safety PLC simulation').
On the Safety Cockpit toolbar, click the 'Connect to Safety PLC' button to establish:

Available status information and diagnostics (Safety PLC messages)

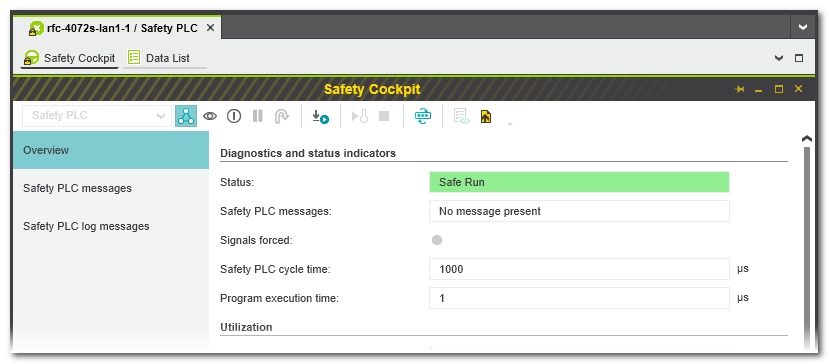

The information is divided into several sections which can be selected via the list on the left. The shown information depends on the controller type involved. Example:

Note
Status information read from the device is only displayed while the communication connection is established between the Safety PLC and PLCnext Engineer. Otherwise, only project-related (offline) information is shown here.

'Overview' page

The page 'Overview' provides the following information structured in different sections:

'Diagnostic and status indicator' section

Element Meaning Refresh interval

Status Indicates the operational Safety PLC state. The state is also reflected by the Safety PLC icon in the PLANT. 500 ms

Fail Indicates whether the Safety PLC has written an entry to the error stack of the safety-related runtime (SafeOS). If the LED is on, you can read the errors from the error stack display them in the 'Safety PLC messages' page of the Safety Cockpit. Refer to the description below. 500 ms

Signals forced Indicates whether currently I/O variables are forced on the Safety PLC. 500 ms

Safety PLC cycle time Indicates the cycle time of the Safety PLC. Once after connecting to the Safety PLC.

Program execution time Time period needed from the beginning of one control cycle to the beginning of the next cycle and pure execution time needed to process the safety-related program code.
Using these values and further information contained in the Safety PLC manual, you are able to calculate the overall system response time (SFRT). Once after connecting to the Safety PLC and after writing a safety-related project.

Element	Meaning	Refresh interval
Status	Indicates the operational Safety PLC state. The state is also reflected by the Safety PLC icon in the PLANT.	500 ms
Fail	Indicates whether the Safety PLC has written an entry to the error stack of the safety-related runtime (SafeOS). If the LED is on, you can read the errors from the error stack display them in the 'Safety PLC messages' page of the Safety Cockpit. Refer to the description below.	500 ms
Signals forced	Indicates whether currently I/O variables are forced on the Safety PLC.	500 ms
Safety PLC cycle time	Indicates the cycle time of the Safety PLC.	Once after connecting to the Safety PLC.
Program execution time	Time period needed from the beginning of one control cycle to the beginning of the next cycle and pure execution time needed to process the safety-related program code. Using these values and further information contained in the Safety PLC manual, you are able to calculate the overall system response time (SFRT).	Once after connecting to the Safety PLC and after writing a safety-related project.

'Utilization' section

Element Meaning Refresh interval

Program memory Indicates the usage of the program memory. Once after connecting to the Safety PLC and after writing a safety-related project.

Data memory Indicates the usage of the application data memory. Once after connecting to the Safety PLC and after writing a safety-related project.

Element	Meaning	Refresh interval
Program memory	Indicates the usage of the program memory.	Once after connecting to the Safety PLC and after writing a safety-related project.
Data memory	Indicates the usage of the application data memory.	Once after connecting to the Safety PLC and after writing a safety-related project.

'Safety PLC project information' section

Element Meaning Refresh interval

Name Safety-related project currently stored on the Safety PLC. Once after connecting to the Safety PLC and after writing a safety-related project.

Last build date Time stamp of the project currently stored on the Safety PLC. (Representation acc. to the system locale set for your PC.)

Checksum Checksum of the project currently stored on the Safety PLC.

User User who has written the project to the Safety PLC.

Element	Meaning	Refresh interval
Name	Safety-related project currently stored on the Safety PLC.	Once after connecting to the Safety PLC and after writing a safety-related project.
Last build date	Time stamp of the project currently stored on the Safety PLC. (Representation acc. to the system locale set for your PC.)
Checksum	Checksum of the project currently stored on the Safety PLC.
User	User who has written the project to the Safety PLC.

'Engineering project information' section

Element Meaning Refresh interval

Name Safety-related project currently open in PLCnext Engineer. Once after opening the Cockpit and the after 'Save As...' command.

Last build date Time stamp of the project currently open in PLCnext Engineer. (Representation acc. to the system locale set for your PC.) Once after opening the Cockpit (only if a valid compiled project is available at that point of time) and after each successful project build.

Checksum Checksum of the project currently open in PLCnext Engineer. Once after opening the Cockpit and after each modification of safety-related data in the project.

User User who is currently logged-on to Windows. Once after opening the Cockpit

Element	Meaning	Refresh interval
Name	Safety-related project currently open in PLCnext Engineer.	Once after opening the Cockpit and the after 'Save As...' command.
Last build date	Time stamp of the project currently open in PLCnext Engineer. (Representation acc. to the system locale set for your PC.)	Once after opening the Cockpit (only if a valid compiled project is available at that point of time) and after each successful project build.
Checksum	Checksum of the project currently open in PLCnext Engineer.	Once after opening the Cockpit and after each modification of safety-related data in the project.
User	User who is currently logged-on to Windows.	Once after opening the Cockpit

'Version information' section

Element Meaning Refresh interval

Firmware version Version number of the safety-related firmware of the connected Safety PLC. Once after connecting to the Safety PLC.

Serial number Serial number of the connected Safety PLC. Once after connecting to the Safety PLC.

Element	Meaning	Refresh interval
Firmware version	Version number of the safety-related firmware of the connected Safety PLC.	Once after connecting to the Safety PLC.
Serial number	Serial number of the connected Safety PLC.	Once after connecting to the Safety PLC.

'Safety PLC messages' page

The 'Safety PLC messages' editor page lists the errors which have been read from the error stack of the Safety PLC.
In case of a runtime error, the Safety PLC writes an entry to the error stack of the safety-related runtime (SafeOS). The 'Fail' LED on the 'Overview' page of the Safety Cockpit indicates that an error has occurred and that you can read the errors from the error stack display them here in the 'Safety PLC messages' editor.
Click the button on the Safety Cockpit toolbar to read the error stack and display the messages in the Safety Cockpit.

The help chapter "Error Messages of the Safety PLC" in the Error Catalog provides information on the possible error messages.

'Safety PLC log messages' page

The 'Safety PLC log messages' editor page lists the entries which have been read from the log book of the Safety PLC. In its log book, the Safety PLC records device-related events such as state changes, errors, and so on.

While you are logged on to the Safety PLC and the Safety PLC is in Stop state, click the button on the Safety Cockpit toolbar to read the log book and display the messages.
