Setting Profinet Device Parameters ('Interface List' Editor)

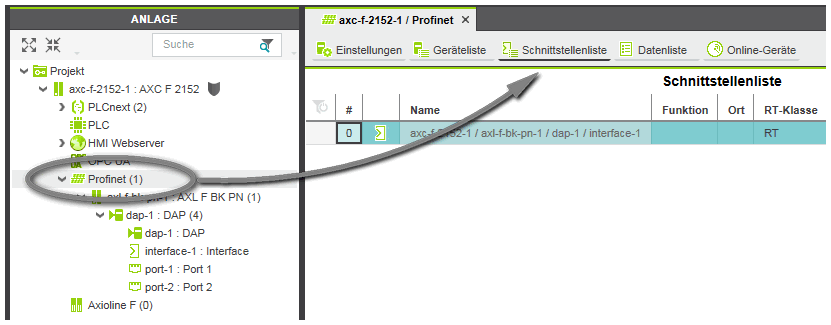

The 'Interface List' editor is available on the 'Profinet' PLANT node.
Example:
This editor enables access to various Profinet device parameters, for example, the 'Function' and 'Location' definition, RT class, reduction ratio, and monitor factor. Some parameters, such as update time and monitor time are read-only.
The editor allows to read parameter values from and write the editable values to the device.
When entering an invalid value, the value cannot be applied and the cell gets a red border. In case of a compiler error (for example, the entered RT class can't be used in the current configuration), the whole row is marked red and a tooltip with an error message is shown.
| Further Info
For detailed information on the particular parameters refer to the Profinet device manual. |

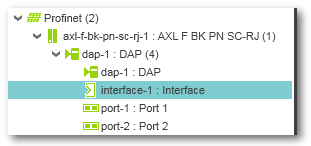

The values set in the 'Interface List' editor are synchronized with the 'Interface' editor of each Profinet device:
Example:
