Viewing Detail Values and Value Differences

After values have been recorded and the curves are displayed in the LOGIC ANALYZER, you can examine the values at individual points in time in more detail.

Note
Showing detail values and differences is possible while the recording is stopped.

For that purpose, the LOGIC ANALYZER toolbar provides two icons which can be used to show

Both functions are described below.

Note
The following applies to both functions: The format of the time values displayed in the popup depends on the time-axis label activated in the LOGIC ANALYZER toolbar. Using the following toolbar buttons, you can display the time values as absolute or relative time values or as number of samples collected from the start of recording.

This topic contains the following sections:

Showing Value Details for one Point in Time (First Marker)

As soon as values have been recorded, you can display a popup that shows the exact variable values at the current point in time (first marker).

  1. Click the left detail button ('Hide / Show Values') on the LOGIC ANALYZER toolbar to show the value popup:

  2. To change the point in time drag the vertical cursor line.

  3. If desired, you can move the value popup using the mouse from its default position at the top of the timeline.

Showing Value Details and Differences (First and Second Marker)

  1. Precondition for displaying value differences is that the first point in time (first marker) has already been selected (by clicking the left detail button on the LOGIC ANALYZER toolbar has already).

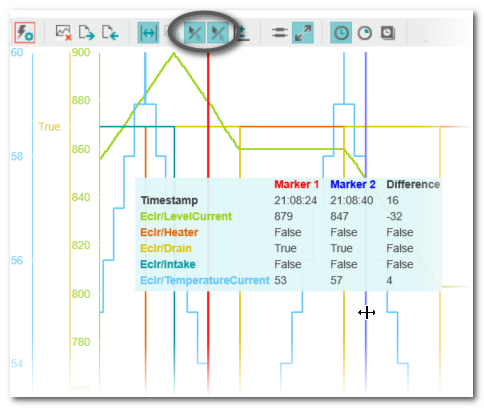

  2. Click the right detail button ('Hide / Show Values') on the LOGIC ANALYZER toolbar to set a second point in time (marker):

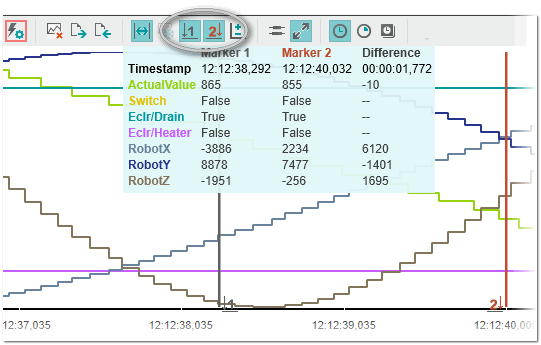

    The detail view is now extended to include the second point in time and the differences in the values between the two points in time.

    Note
    For Boolean variables, the difference value is True if the value differs at the first and second points in time (Boolean exclusive OR operation).

  3. You can change both points in time by dragging the corresponding vertical cursor line.
  4. If desired, you can move the value popup using the mouse from its default position at the top of the timeline.
